$tromTrooper
Joined
·
1,741 Posts
Discussion Starter #1 (Edited)
Just got tired of the buffeting with the stock shield and am too cheap to pay $200 to CalSci.....

So I build my own. $13 for the material at HomeDepot.

Used my wife's plates and bowles and a ruler to trace the shape. Cut it with a fine toothed blade on a jig saw. Used a sander to smooth everything out. Kitchen oven on middle rack and 'broil' setting, flipping every 2 minutes....for about 5-6 minutes (don't forget to put cardboard underneath).....before shaping over an Iglo, 5 gallon water jug. Standard drill bit to drill the holes.....

Turned out pretty awesome and the buffeting is all but gone.....(I need to do something different about the mirrors)

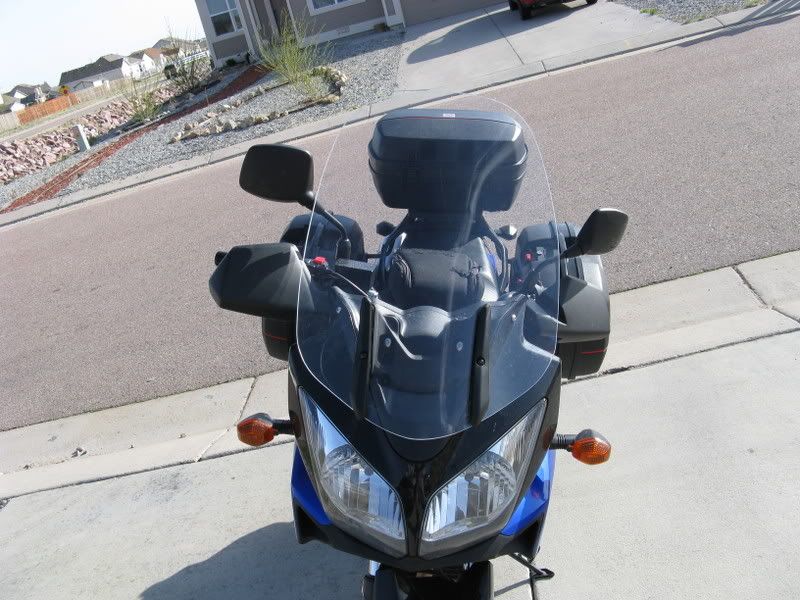

Here's some pics.....







·
Premium Member
Joined
·
2,231 Posts
Yeah, nice job! What is the material -- acrylic, lexan?


·
No longer riding.
Joined
·
1,520 Posts
So if I am the first to order 1, does that mean I get a free demo model?:rolleyes: Just kidding, looks really good!


·
Registered
Joined
·
1,436 Posts
That looks really nice.

I made one (from lexan) but didn't try to bend it using heat. It worked (i.e. didn't break while bending) but I had a heck of a time linning up the holes. I can see how bending it would make that part much easier. I had to kinda guess where they should be and ended up having to enlarge them too much. I just used some fender washers and it worked but yours looks nicer.

I need to try this again.


·
Registered
Joined
·
503 Posts
That's a 2 thumbs up, very sano job! and I like the shape. I'm assuming there's a shorty version too! let me see.........where did i put that water jug???


·
$tromTrooper
Joined
·
1,741 Posts
Discussion Starter #7
My first attempt was with the thin Lexan. That was a disaster, because every time I climbed above 60 mph, the shield would bend back.

This is the thicker, acrylic material and it came out beautiful.

As for helping out......
Sorry, but can't build more.....barely have time to do my own stuff.

But here is a drilling recommendation that I learned off another site..... Measure and only drill the two holes for the plastic guides. Once the shield is placed on the mount, then you can easily 'sharpie mark' the other 6 holes and drill them. This is really important, as it will help you see and understand the angle at which the hole needs to be drilled. Sounds complicated, but is really a 10 minute job and pretty easy. (ps...I also drill the holes first with a much smaller drill....then went to the larger drill for final size.)


·
Registered
Joined
·
36 Posts
That looks great! What are the height and width measurements? I'd like to attempt this. Any suggestions?

Thanks for the post. Again nice job.


·
$tromTrooper
Joined
·
1,741 Posts
Discussion Starter #10
That looks great! What are the height and width measurements? I'd like to attempt this. Any suggestions?

Thanks for the post. Again nice job.


I went as wide and as high as the piece would allow. I can't remember the dimensions of the stock piece....but it is as Home Depot sells it....maybe 24" x ????...

Honestly, I was able to trace and measure the pattern with a simple ruler and different sized bowls and plates. Just play with the shape you want.


·
Registered
Joined
·
36 Posts
I went as wide and as high as the piece would allow. I can't remember the dimensions of the stock piece....but it is as Home Depot sells it....maybe 24" x ????...

Honestly, I was able to trace and measure the pattern with a simple ruler and different sized bowls and plates. Just play with the shape you want.
18" x 24" is what I picked up last night for like 13 bucks at the Depot.

I was thinking of going 18" x 18" at first but think I'll go the whole 24" as well. If I can handle this one I may experiment with other sizes.

Gotta love anything you can design with kitchen utensils....lol


·
Registered
Joined
·
450 Posts
John that looks fantastic!
