Eastern Beaver PC8 Install Questions

Hi Guys,

I have been dragging my feet on the install of my nice new PC8 but tomorrow is the day. I just wanted to ask some dumb arse questions before I begin.

1) Fixing the PC8 to the plastic battery tray: The kit came with some screws that look like they will have no trouble going through the plastic tray. I assume their purpose is to secure the PC8 to the tray? If so, I guess it is safe to presume that I don't need to worry about anything beneath the tray (wires, hoses...) getting punctured by the screws? Failing that I guess it's gonna have to be double sided tape? None of the photos on EB's install page show what is actually holding the fuseblock in place.

2) Wiring: What "gauge" wiring should I run to my devices? I will be running separate pairs of wires for the following: Datel volt meter, cigarette socket for GPS and another for phone, cigarette socket for electric air pump.

3) More wiring q's: Can I just run the same gauge wiring to everything, using the thickest gauge needed for my devices. i.e. is it true that I only need to be worried about running wiring that is too thin, rather than worrying about running wires that are too thick, seeing as the fuses will protect against excessive current draw?

Any help is appreciated.

[URL=http://www.fuelly.com/motorcycle/suzuki/dl650_v-strom/2011/strangedog/493573][IMG]http://badges.fuelly.com/images/sig-us/493573.png[/IMG][/URL]
[URL=http://www.fuelly.com/motorcycle/suzuki/dl650_v-strom/2006/strangedog/401455][IMG]http://badges.fuelly.com/images/sig-us/401455.png[/IMG][/URL]
Strange Dog is offline
Sponsored Links
Advertisement

post #2 of 12 Old 05-04-2013, 06:44 AM
FORUM GODFATHER.....R.I.P. PAT

greywolf's Avatar

Join Date: Jan 2006
Location: Evanston IL USA
Posts: 38,049
Garage
The PC8 is a generic item, not bike specific. Location is user selected too. I wouldn't like the pointed screws sticking through the tray. If the bike isn't lowered, they shouldn't cause a problem though. I've used 3M duo lock in the past. The problem with that is a large amount makes it almost impossible the separate again and a small amount breaks the adhesive bond to the plastic. Simply attaching the wiring holds it in place pretty well if the wires are bundled and zip tied. The trick with Duo Lock or double sided foam tape is cleaning the plastic with alcohol and leaving the installation alone for a couple of days before wiring to allow the adhesive to properly set.

You want 10 or 12ga from the battery to the relay and PC8. 14ga is good for a loud horn like the Stebel. 16ga will handle just about everything else easily.

The only problem with thicker than necessary wiring is its bulk. It's fine electrically.

Pat- 2007 DL650A was ridden to all 48 contiguous states. I didn't quite make it to 17,000 miles on the 2012 DL650A.
Nicknames I use to lessen typing, Vee = 2002-2012 DL1000s. Vee2=2014-2016 DL1000s. Wee = 2004-2011 DL650s. Glee = 2012-2016 DL650s
See https://www.stromtrooper.com/general...nicknames.html

Please vote in the poll on what Strom(s) you have at https://www.stromtrooper.com/informa...-you-have.html

Last edited by greywolf; 05-04-2013 at 06:46 AM.
greywolf is offline
post #3 of 12 Old 05-04-2013, 06:54 AM Thread Starter
Stromthusiast!

Strange Dog's Avatar

Join Date: Aug 2011
Location: Canberra-ish, Australia
Posts: 924
Garage
Thanks for the reply GW. I am a little uneasy having pointy screws sticking into my bike's nether regions. I'll look into the adhesive option.

[URL=http://www.fuelly.com/motorcycle/suzuki/dl650_v-strom/2011/strangedog/493573][IMG]http://badges.fuelly.com/images/sig-us/493573.png[/IMG][/URL]
[URL=http://www.fuelly.com/motorcycle/suzuki/dl650_v-strom/2006/strangedog/401455][IMG]http://badges.fuelly.com/images/sig-us/401455.png[/IMG][/URL]
Strange Dog is offline

post #4 of 12 Old 05-04-2013, 01:03 PM
Stromthusiast!

bleedgrn's Avatar

Join Date: Jan 2013
Location: Duluth, Minnesota
Posts: 859
Your timing is perfect for me. A friend and I are wiring the PC8 into our Glees tomorrow as well as wiring some accessories. Thanks for the pointer. I am also looking to pick up some VOX shrink tubing to run over my accessory wiring so that I can safely and cleanly install along the frame rail to the triple clamp area. I think the general advise is secure the wiring every 6 or so inches to reduce vibration and eventual wear. Also leaving enough play at the terminal end where movement occurs. Turning the bars both direction for clearance etc. Pulling the tanks off as well. Will read related post on this first. Thanks again for all the quality advise on these matters.

Keep Calm, Fly-fish
------------------------------------------------------------
L2 Glee White- birthday 17 JAN 13
Farkles last to first: MFW Hwy pegs, Russell Daylong, Givi 3D604 tank bag, Motech Pegs, Madstad bracket&adv windshield, Tuono mirrors, Uclear HBC200 headset, E45 topcase, Cree driving lights w/Motech brackets,14T Sprocket, bar riser, E21 panniers, Stich heated grips/outlet, EB PC8, RR Fork Brace, Kouba link, Barkbusters, SW-Motech Centerstand/Skidplate/Crash Bars.
bleedgrn is offline
post #5 of 12 Old 05-04-2013, 01:13 PM
FORUM GODFATHER.....R.I.P. PAT

greywolf's Avatar

Join Date: Jan 2006
Location: Evanston IL USA
Posts: 38,049
Garage
I use Radio Shack split cable tubing to protect wiring.




Pat- 2007 DL650A was ridden to all 48 contiguous states. I didn't quite make it to 17,000 miles on the 2012 DL650A.
Nicknames I use to lessen typing, Vee = 2002-2012 DL1000s. Vee2=2014-2016 DL1000s. Wee = 2004-2011 DL650s. Glee = 2012-2016 DL650s
See https://www.stromtrooper.com/general...nicknames.html

Please vote in the poll on what Strom(s) you have at https://www.stromtrooper.com/informa...-you-have.html
greywolf is offline
post #6 of 12 Old 05-04-2013, 05:58 PM
$tromtrooper

Stalky Tracker's Avatar

Join Date: Dec 2005
Location: Sconsin, USA
Posts: 3,987
Garage
I used velco to hold my PC-8 in the tray behind the battery. But as Greywolf noted if you use the right amount it may never come loose, even when you want it to.

Photo before clean-up, though Greywolf looks much nicer.


2020 Eastern V-Strom Rally (website) - May 14 - 17, 2020
__________________________________
2006 Suzuki V-Strom DL650K
1986 Honda Shadow VT700C
1974 Suzuki TM-250
1966 Triumph Bonneville T-120R
1965 Suzuki 80

Last edited by Stalky Tracker; 05-04-2013 at 06:15 PM.
Stalky Tracker is online now
post #7 of 12 Old 05-04-2013, 06:26 PM
Stromthusiast!

CanadianFZ6's Avatar

Join Date: Dec 2008
Location: Kichener/Waterloo Ontario, Canada
Posts: 1,856
1) I used velcro so I can quicky remove it to add more accs...

2) Wire guage depends on current required to run the particular accessory... e.g. a cell phone or GPS can easily use 18 - 20g where as a tire compressor might use 16g or so...

3) 16g would probably run everything you could possibly want to add to the PC8fuse panel ... But having the PC8 full of 16g wire can be a bit tight between contacts....

2015 DL650AL5 in Blue
CanadianFZ6 is offline
post #8 of 12 Old 05-04-2013, 11:54 PM
Stromthusiast!

PSychoslag's Avatar

Join Date: Apr 2012
Location: Oregon
Posts: 80

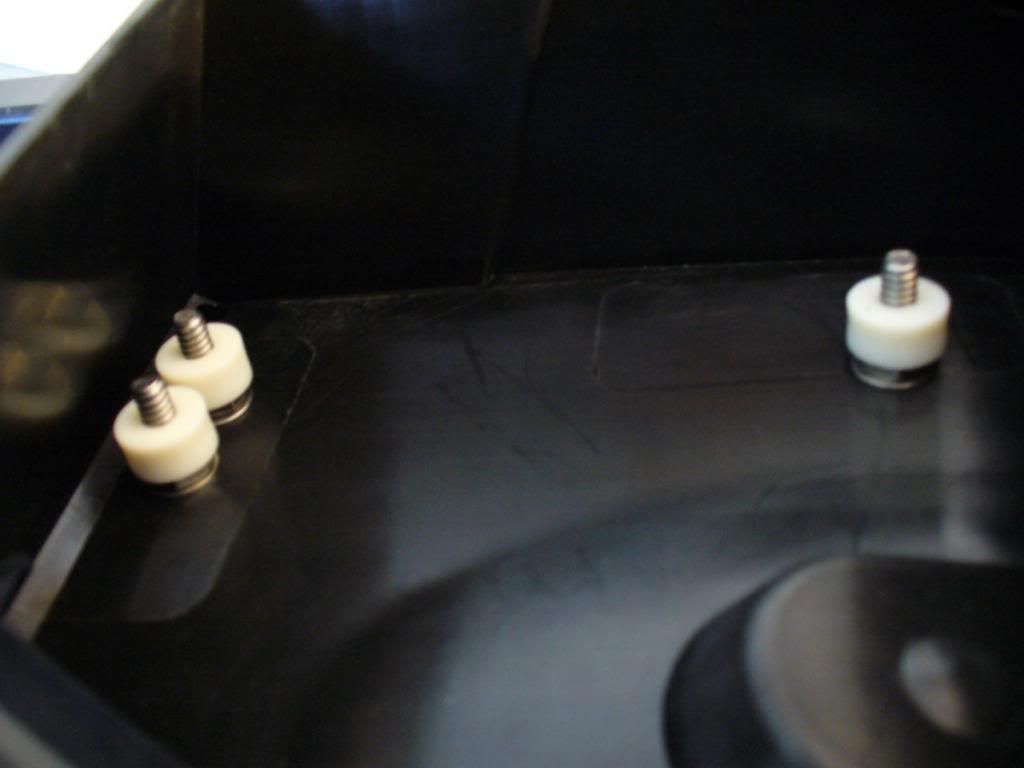

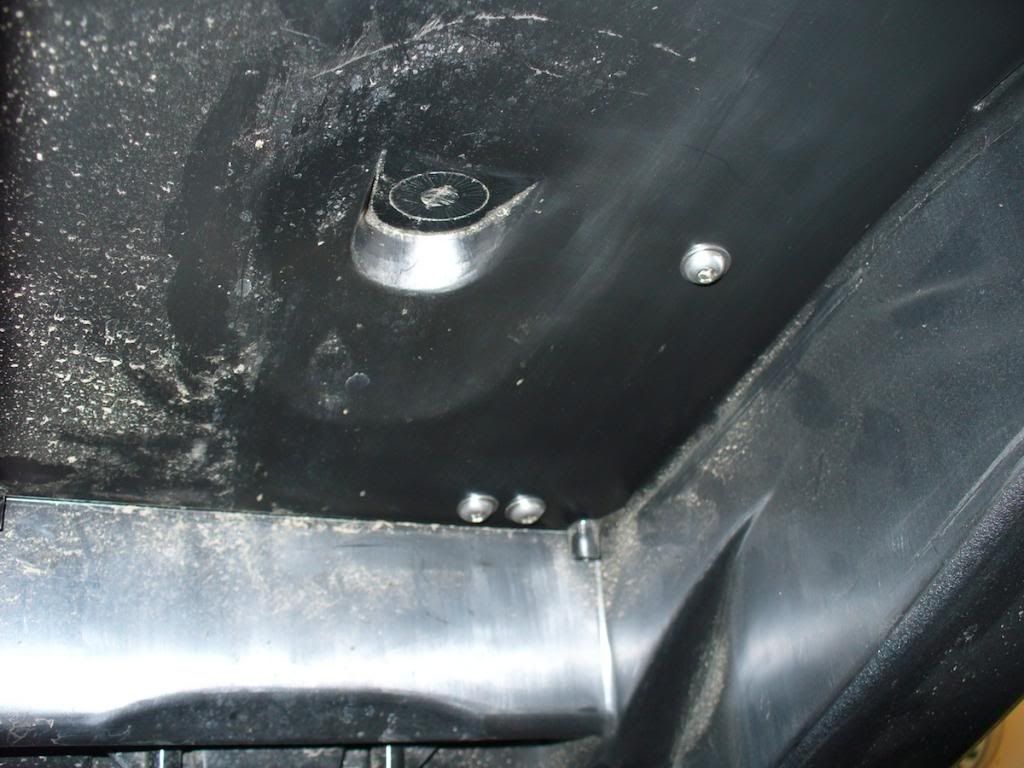

Here's how I did mine. Only used three button head screws because the fourth got into the hump in the tray and wouldn't sit flat. It's hard to see but there's a nut under the nylon spacer that holds it all to the tray.
