Default Hyper lites install pics

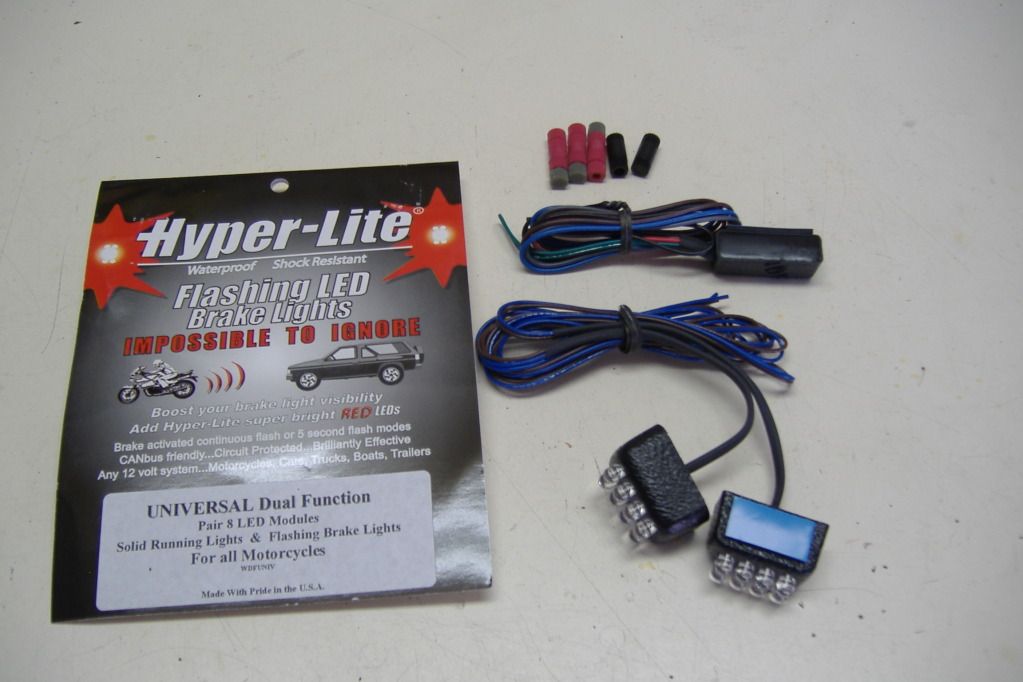

Since I commute in fairly heavy city traffic, I thought some extra visibility was in order, so I ordered a set of hyper light flashing LED brake lights with the optional running lights. Here's a pic of everything that came with the order, 2 eight led brake/running light modules, a controller module, all necessary wiring and connectors.

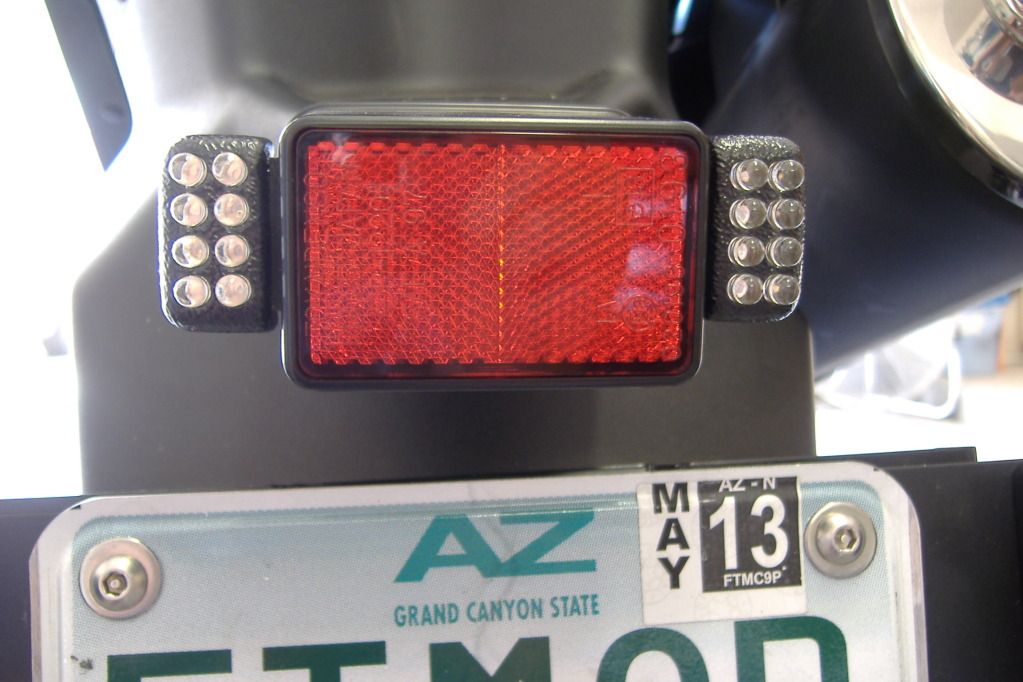

The light modules have adhesive foam tape on one side that allow you to attach them anywhere that suits you. I chose to stick them on either side of the license plate light.

I ran the wiring up through the bottom of the license plate light and followed the wiring up to the space behind the taillight.

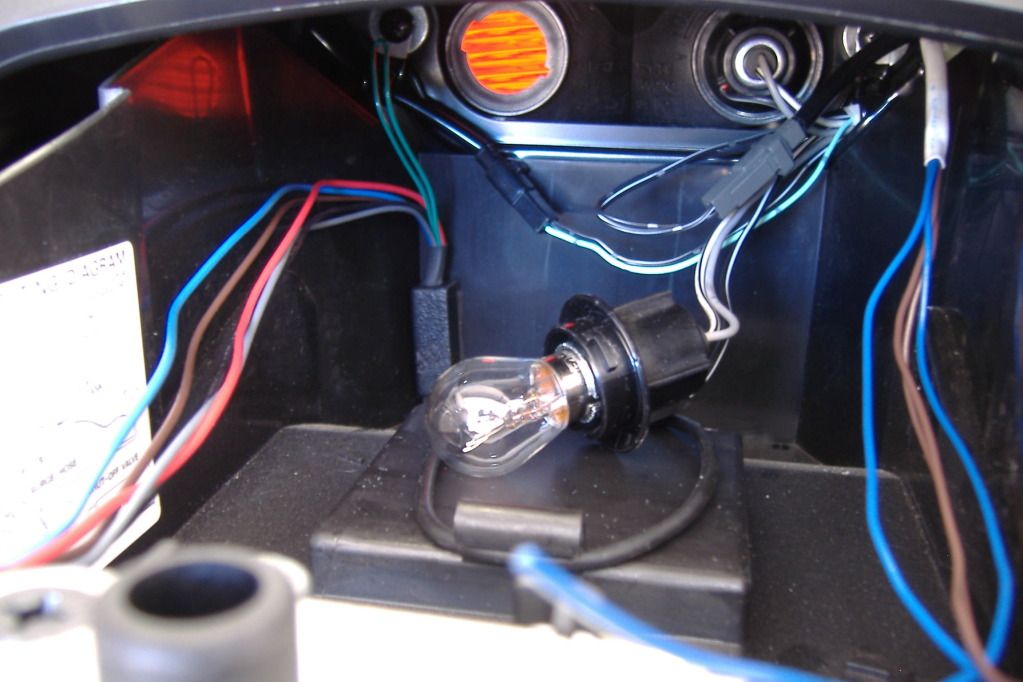

Here is the wiring , the rectangular box in the lower left is the controller module with the wires coming off it. On the right side is the wiring coming up from the hyper lites. I pulled one of the tail/brake light bulbs out to connect my wires to.

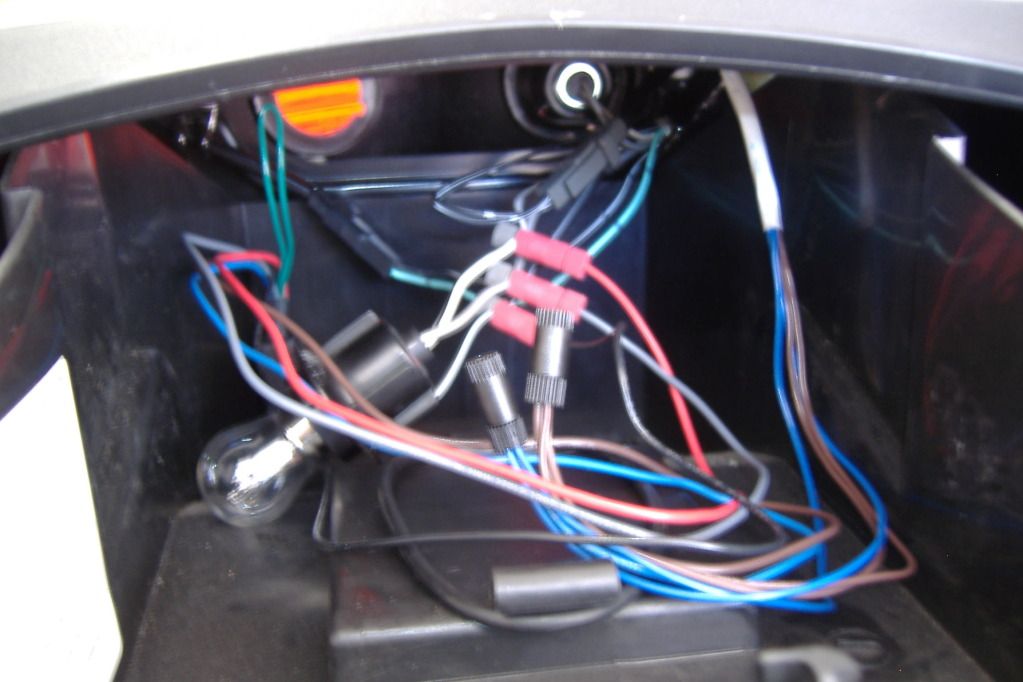

Here is the wiring with all the connections made. Hyper lites supply's wiring color
codes. I chose to have the flash for 5 seconds then go solid bright option.

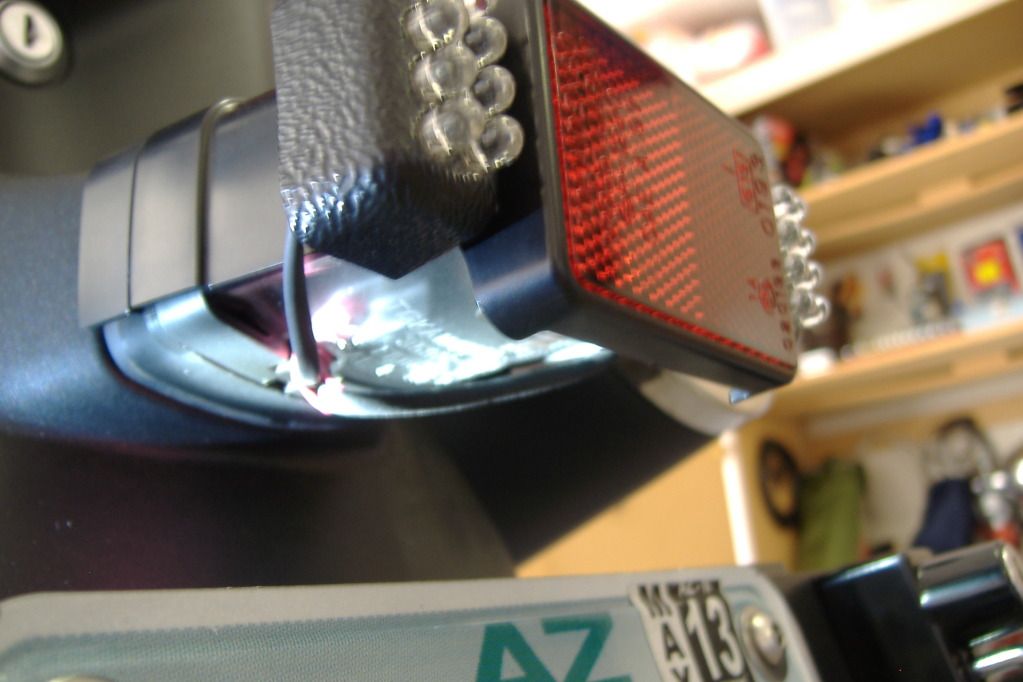

After all connections were made, I re installed the bulb and tucked the wiring out of the way. The installation went well, the lights are very bright. Overall very happy with the results. Here is a pic of the lights at their brightest.

Not bad for just 2 little led modules.
