Default Template for mounting Pelican Cases with Twisted Throttle Mounts & Givi Racks Vee?

Are there any kind of pics or patterns out there of a preferred mounting position for Pelican Cases with Twisted Throttle Mounts and Givi Racks?

They come undrilled and I would really like to learn from others success (or mistakes!) so i get it right the first time!

Thanks,
Vincent

Last edited by Vincenthdfan; 12-04-2012 at 08:03 PM.
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Sponsored Links
Advertisement

  #2
Old 12-04-2012, 09:04 PM
Black Lab's Avatar
What Kinda Bike Is That?

Join Date: Mar 2008
Location: Mount Desert Island, Maine
Posts: 5,439
Default

Quote:
Originally Posted by Vincenthdfan View Post
Are there any kind of pics or patterns out there of a preferred mounting position for Pelican Cases with Twisted Throttle Mounts and Givi Racks?

They come undrilled and I would really like to learn from others success (or mistakes!) so i get it right the first time!

Thanks,
Vincent

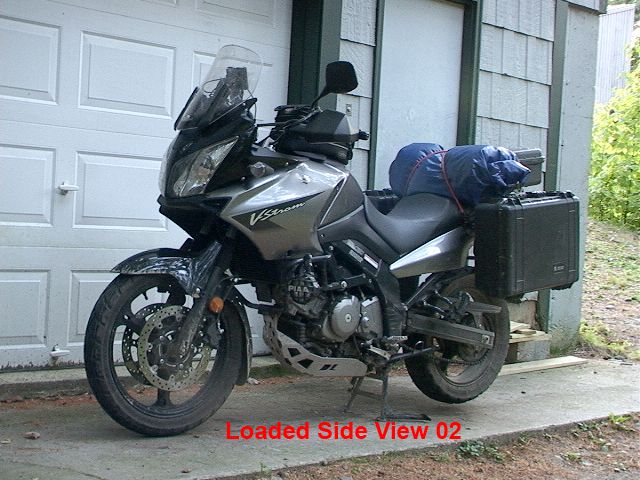

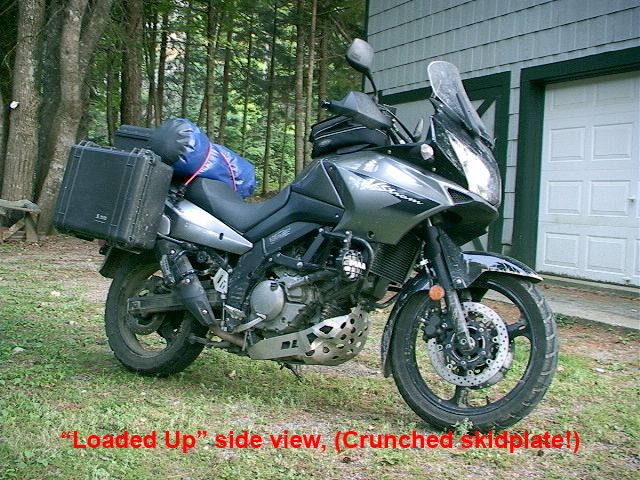

I had to dig back to September 2007 to find some photos that I put together. What you will see below is, a set of Pelican 1550 cases mounted to a set of "old style" SW-Motech racks. The secret is, you want to keep the cases up just as high as you can get them, (So that you won't nick the corners of the cases when laying the bike over in tight turns. And, so that a possible passenger will have enough leg room in front of cases to use the passenger footpegs.)

Here are the measurements that I worked out on my own and used.








(Jeepers! I can't believe that my bike once looked that ugly!)

B.
__________________
2007 DL-650 (I gave away in 2012 with 111,000 + miles)
"A word grows to a thought; a thought to an idea; an idea to an act. All the pieces are put together, and the whole is yours."
1942, Beryl Markham: "West With the Night"
"In most men, there lurks a lesser man, and his presence smells in the the sun."
1961, Ernest K. Gann: "Fate Is The Hunter"
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #3
Old 12-04-2012, 10:07 PM
Stromthusiast!

Join Date: Mar 2011
Location: Pasadna area
Posts: 4,380
Default

I mounted some Sea Horse cases on the Suzuki frames. I just held up the bag to where I like it and put a pencil mark through the factory mount holes and drilled away. I bolted mine on pernamently.
Some guys have done a quick release arrangement that is a bit better than mine.
There are pics if you do a search of saddle bag mounts.
