Default Looking to build my own luggage racks

I got a couple of ammo cans and have been looking at how to mount them. It looks like the 4 mount locations for the stock rack will work and I think some racks connect to the pasenger peg mounts. Are those the only locations to mount too?
__________________
'08 Wee
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Sponsored Links
Advertisement

  #2
Old 11-21-2012, 08:44 AM
Arrowhead's Avatar
Stromthusiast!

Join Date: Sep 2012
Location: Stillwater, NY
Posts: 104
Default

Even though I've done a lot of searching on this subject, I just ran across this post in an old thread. It looks like there are three mount points on each side and then just tie the two racks together in the back.


Quote:
Originally Posted by Colorado CJ View Post

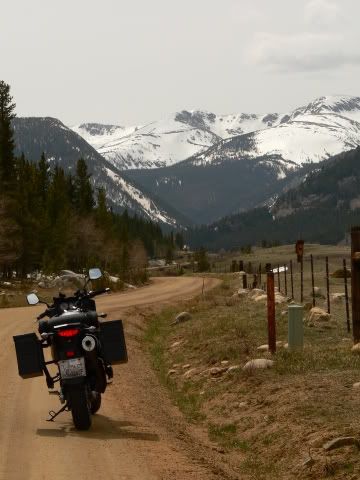

Built the racks myself and used ammo cans. About $60.00 total. Can hold ALOT of gear:







__________________
'08 Wee
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #3
Old 11-21-2012, 08:51 AM
bassbronco_74's Avatar
$tromtrooper

Join Date: Apr 2011
Location: Washougal, Washington
Posts: 1,372
Default

yup...that's pretty much it for mount locations...

you've got the two mount points you can use from the factory rear rack, then tie it in forward to the passenger pegs, then you just make a connection bar that goes behind the tire to solidify the system...

good luck and post and take lots of pictures!!
__________________
DL650K7
XL1200N (Sold)
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #4
Old 11-21-2012, 09:30 AM
realshelby's Avatar
Official Stromtrooper.com Sponsor

Join Date: Aug 2009
Location: Houston Texas
Posts: 1,491
Default

About all the rack manufacturers use similar mounting points. You are good in using the top rack mounts, the forward one can be a flat bar that goes under the passenger hand hold mount, the rear can be done the same but I recommend something that goes all the way across to the other side to tie the system together. These two mount will be the first you want to fabricate. Get your height and angle correct for the cans/bags here first. Then build from the passenger footpeg ( there are already very handy holes there to bolt into) to the lower front of your mounts. This needs to be sturdy as it can carry a lot of load because of it mounting to the footpeg mount. Last is fabrication of a mount across the back. This you can use your imagination with. Ideal time to make a mount for an auxilliary light or even a place to bolt a small Pelican case to for tools/small can of chain lube. I find round tubing easy to work with as it can be bent nicer for most home shop builders. A good heavy wall tube is actually easier to work with, much easier to bend ( not as bad to kink ) and easier to weld to. Doesn't have to be too large in diameter, just make sure the wall thickness is enough to make it stiff enough when tied together.
__________________
'12 DL 650- '04 DL 650- '04 R 1150 RT

WERKS modified clutch baskets for DL and SV 1000's.
The BEST in chudder control, noise control, and lasting durability! AVAILABLE HERE: www.werksparts.com
Have questions about the clutch in your DL or SV 1000? E-mail Terry info@werksparts.com
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #5
Old 11-21-2012, 10:20 AM
Arrowhead's Avatar
Stromthusiast!

Join Date: Sep 2012
Location: Stillwater, NY
Posts: 104
Default

Thanks for the tips, I have some DOM tubing that might work good for this.

What size tubing are crash bars usually? I'd like to try an fab some of them up as well.
__________________
'08 Wee
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #6
Old 11-21-2012, 10:24 AM
greywolf's Avatar
Moderator++

Join Date: Jan 2006
Location: Evanston IL
Posts: 28,607
Default

1" OD is typical for crash bars.
__________________
Pat- 2007 DL650A was ridden to all 48 contiguous states. 2012 DL650A is just getting started.
Nicknames I use to lessen typing, Vee = 2002-2012 DL1000s. Vee2=2014+ DL1000s. Wee = 2004-2011 DL650s. Glee = 2012+ DL650s
See http://www.stromtrooper.com/general-...nicknames.html

Please vote in the poll on what Strom(s) you have at http://www.stromtrooper.com/informat...-you-have.html
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #7
Old 11-21-2012, 06:38 PM
mullerjd's Avatar
Stromthusiast!

Join Date: Jun 2009
Location: Saratoga, NY
Posts: 429
Default

I made racks for a friend's KLR out of 1" square and it works great 3 years later.
__________________
63 BMW R69S sidecar project, 69 BMW R60US, 00 SV650, 02 SV650S, 05 Wee, 07 Tuono
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #8
Old 11-21-2012, 11:02 PM
BumbleBee's Avatar
Stromthusiast!

Join Date: Jun 2006
Location: washington state
Posts: 493
Default

Quote:
Originally Posted by Arrowhead View Post
Thanks for the tips, I have some DOM tubing that might work good for this.

What size tubing are crash bars usually? I'd like to try an fab some of them up as well.
I made my own saddlebag racks out of 1/2" conduit $4.00 a 10 foot stick. checkout reply #3

http://www.vstrom.info/Smf/index.php....html#msg80904

as stated crash bars are bigger
__________________
03' yellow dl1000 Rich's seat, custom built racks with ortieb drybags
givi crash bars, powercommander,mm spacers,SV slipper clutch
43t sprocket, speedohealer custom 04'+MpDesigns/madstad windscreen

Last edited by BumbleBee; 11-21-2012 at 11:04 PM. Reason: wrong link
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #9
Old 11-22-2012, 01:21 PM
henerythe8th's Avatar
$tromtrooper

Join Date: May 2007
Location: Ice Harbor, WA
Posts: 1,611
Default

Hey Tom,
Did you bend the conduit with a conduit bender or something with a smaller radius?
__________________
L2V -- she's a stocker!...and gone...
2011 MG Stelvio
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
  #10
Old 11-22-2012, 02:18 PM
BumbleBee's Avatar
Stromthusiast!

Join Date: Jun 2006
Location: washington state
Posts: 493
Default hydro tube bender

H8,

borrowed a buddy's hydro tube bender with 3/4" die and a 3" radius. not sure a regular conduit bender would work. the only issue I have with the conduit is getting paint to stick to them good, the galvanize is probably the issue . I think I will look into some powder coating this winter during my maintenance schedule. they seem to be plenty strong, but not a vstrom roll bar.
__________________
03' yellow dl1000 Rich's seat, custom built racks with ortieb drybags
givi crash bars, powercommander,mm spacers,SV slipper clutch
43t sprocket, speedohealer custom 04'+MpDesigns/madstad windscreen
